Canon camera photo recovery works because a Canon body does not erase photos when you delete them or run its default format. It only clears directory entries, while the CR2, CR3, or JPEG bytes stay on the card until new shots overwrite the same clusters. So whether you deleted images, formatted a card, or have an EOS body complaining about its memory card, the first move is the same: remove the card, stop writing to it, and read it through a card reader rather than the camera’s USB cable.
Recovering Photos From a Canon Camera: What Decides Success
Two factors decide whether Canon EOS photo recovery succeeds: how much was written after the loss, and whether the scan matches the file types you need. Deletion and formatting only touch the file index; SD and CF cards do not run TRIM, so freed clusters are not scrubbed automatically. Reshoot on a formatted card, though, and the camera can reuse those clusters, so a card left idle recovers far better than one used again.
The rules are identical across brands, and our camera photo recovery guide covers them in order. Everything below is Canon-specific: the RAW containers you may get back and how they behave when damaged.
Canon File Formats: CR2, CR3, and the Older CRW
| Format | Typical bodies | Container structure |
|---|---|---|
| CRW | First DSLRs (EOS D30, D60, 10D era) | Early proprietary layout |
| CR2 | EOS DSLRs through the 5D, 6D, and 7D generations | TIFF-style container |
| CR3 | EOS R-series mirrorless and late DSLRs such as the EOS 90D and EOS-1D X Mark III | ISO-BMFF container, the family used by MP4 and MOV |
Canon began the switch around 2017-2018 with cameras such as the PowerShot G1 X Mark III, the EOS M50, and the EOS R. Almost every body since records CR3, and most also offer a compressed “C-RAW” mode that roughly halves file size.
The generation gap matters more to recovery than most owners expect. CR2 uses a TIFF-style layout, while CR3 is an ISO-BMFF container modeled on the box structure of MP4 and MOV, typically opening with an ftyp-style header. A tool built around CR2 does not automatically understand CR3, so check the supported-format list before trusting a scan and treat a RAW file as recovered only once it actually opens.

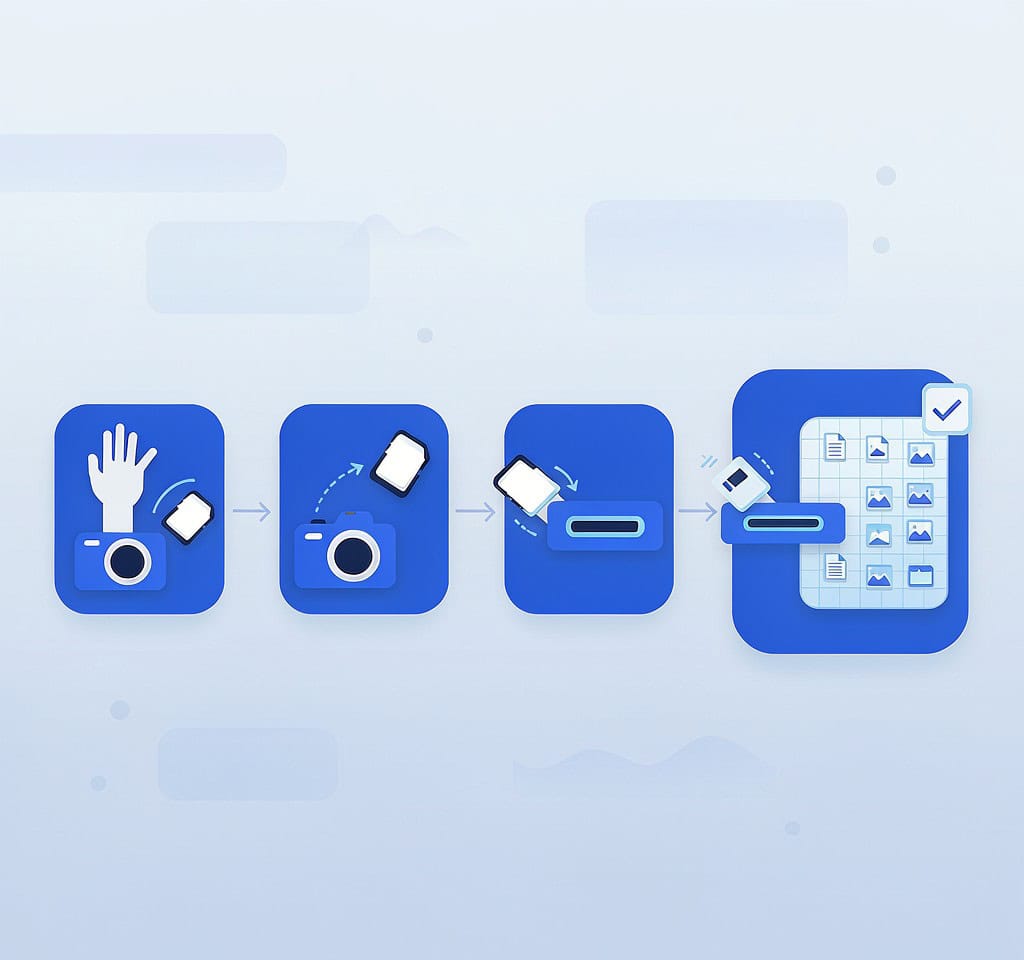

Deleted or Formatted? The Canon Recovery Workflow
- Stop. Remove the card, and do not reformat or reshoot. If a format dialog shows the “low-level format” option checked, uncheck it: that option overwrites the card and is the one case where in-camera formatting truly destroys photos.
- Scan through a quality card reader. The default in-camera format is a quick format that clears the index but leaves photo clusters in place.
- Run a deep, signature-based scan. Canon stills appear as IMG_1234.CR2 or IMG_1234.CR3 under a DCIM folder, so filter recovered results by extension, size, and date.
- Preview before restoring, then save everything to a different drive. A 64 GB card typically takes 15 to 30 minutes to deep-scan.
RAW-Specific Notes for Canon Shooters
Because CR3 is an ISO-BMFF container, it fails differently from CR2 when a write is interrupted or a file is partially overwritten: damaged frames may show color banding, open black, or refuse to open at all, and results differ between the two formats for the same kind of damage.
Canon embeds a preview image in both CR2 and CR3 for in-camera review. Tools that extract that preview can show you a recognizable photo even when the RAW payload is not yet decodable, making preview a reliable filter. If a recovered file will not open in your RAW editor, verify it with Canon’s free Digital Photo Professional, which decodes CR2 and CR3 natively. For the full picture on fragmentation and partial overwrite, see our RAW photo recovery guide.
Canon Video Files: Interrupted MOV and MTS Clips
Older EOS DSLRs recorded H.264 video in MOV containers, Canon camcorders wrote AVCHD as MTS and M2TS, and the EOS R generation records MP4. Whatever the container, an interrupted recording is the common failure: if the battery dies or the card is pulled while writing, the clip never receives its closing index, so it recovers at full size but will not play.
Canon video recovery is therefore a two-stage job: recover the clip, then rebuild the missing index. Recovered-but-unplayable MOV, MTS, and MP4 files are usually intact, and our guide to repairing corrupted video files explains rebuilding the index with a reference clip or remuxing with ffmpeg.
When a Canon Body Reports a Card Error or Asks to Format
An EOS body can suddenly report that the card cannot be accessed, show an error code, or ask you to format the card. That is alarming but usually recoverable. Camera-level card errors normally mean the file system or directory was damaged, typically by pulling the card mid-write, draining the battery during a save, or using a failing or counterfeit card. Confirming the format prompt turns a likely-recoverable card into a wiped one.
If Windows also offers to format, decline. As long as the computer assigns a drive letter, signature-based scanning can work around the broken file system. For the symptom-by-symptom approach, see our corrupted SD card recovery guide.
When Recovery Software Makes Sense for a Canon Card
Free carving tools recover JPEGs from a Canon card without trouble, but RAW support varies between products and CR3 is newer than many scanners. No vendor guarantees brand-specific RAW or HEVC support, so confirm the supported-format list covers your extensions first. If the card is physically damaged, cracked, or corroded, no software helps and a data recovery lab is the next step.
If you are on Windows and the card is still readable by a computer, a purpose-built recovery tool such as XRecovery (xappset.com) can scan SD, microSD, and other memory cards for deleted or formatted photos and videos. As with any recovery tool, stop writing to the card first and save recovered files to a different drive. For a side-by-side look at tools that advertise camera-specific support, see our free memory card recovery guide comparison.
Frequently Asked Questions
Are CR2 and CR3 recovered the same way?
No. CR2 is a TIFF-style container and CR3 is an ISO-BMFF container with a different layout. Confirm the recovery tool lists your exact extension, then verify recovered RAW files by opening them.
I formatted the card in my Canon. Are the photos gone?
Usually not. The default in-camera format is a quick format that clears the index and leaves photo clusters intact. The optional low-level format overwrites the card and is not recoverable by software.
My Canon wants to format the card. Should I agree?
No. Decline the prompt, remove the card, and scan it on a computer first. Camera-reported card errors are usually directory or file system damage, and formatting removes the directory entries a scan could otherwise use.
A recovered Canon video won’t play. Is the footage lost?
Probably not. An interrupted recording leaves the video data complete but missing its closing index, so the clip opens as unplayable. Recover the file, then rebuild the index with a reference clip from the same camera.
